DTC P0629-00: Fuel Pump Control Module - Current Error: Outline
DTC P0629-00: (PCM, SKYACTIV-G, US) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Fuel pump control module: Current error |
| Detection condition |
- The PCM detects over-current during the fuel pump control module control.
|
| Fail-safe |
|
| Possible cause |
- Fuel pump unit connector or terminals malfunction
- Fuel pump unit malfunction
- Fuel pump control module connector or terminals malfunction

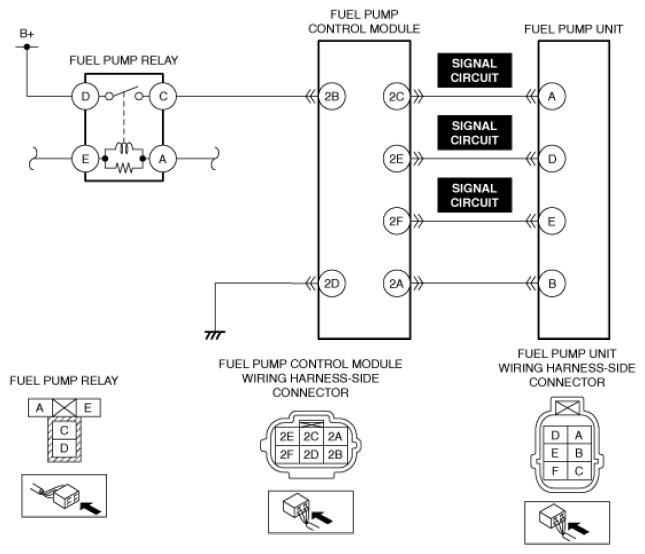

- Short to ground in fuel pump unit signal circuit
- Short to power supply in fuel pump unit signal circuit
- Fuel pump control module malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
