Bolt Installation Note

  1. Tighten the bolts in the order shown in the figure.

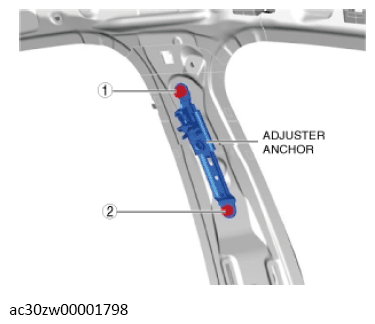

Fig 1: Adjuster Anchor Bolts Tightening Sequence
G13559526Courtesy of MAZDA MOTORS CORP.
