DTC B1455-13: Power Liftgate (PLG) Touch Sensor (RH) Circuit Malfunction: Notes
DTC B1455:13 (POWER LIFTGATE CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Power liftgate (PLG) touch sensor (RH) circuit malfunction |
| Detection condition |
- Power liftgate (PLG) control module detected an open circuit in the power liftgate (PLG) touch sensor (RH) circuit for 0.1 s or more.
|
| Fail-safe |
- Stops the power liftgate (PLG) system operation.
|
| Possible cause |
- Power liftgate (PLG) touch sensor (RH) connector or terminal malfunction
- Power liftgate (PLG) control module connector or terminal malfunction

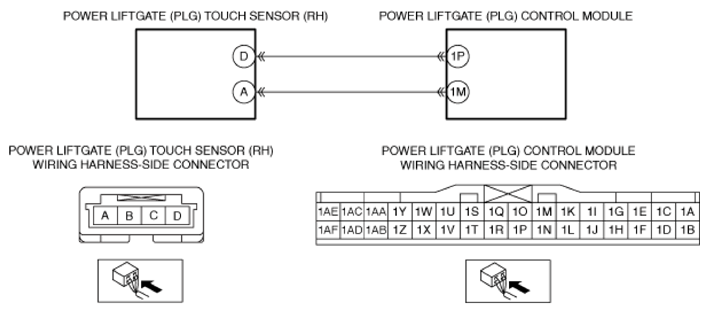

- Open circuit in wiring harness between the following terminals:
- Power liftgate (PLG) touch sensor (RH) terminal D-Power liftgate (PLG) control module terminal 1P
- Power liftgate (PLG) touch sensor (RH) terminal A-Power liftgate (PLG) control module terminal 1M
- Power liftgate (PLG) touch sensor (RH) malfunction
- Power liftgate (PLG) control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
