DTC B139D-24: Walk-In Switch (LH) Is Stuck On [Rear One-Touch Walk-In Control Module]: Notes

DTC B139D:24 [REAR ONE-TOUCH WALK-IN CONTROL MODULE] DETECTION CONDITION AND POSSIBLE CAUSE

Description	Walk-in switch (LH) circuit malfunction
Detection condition	Rear one-touch walk-in control module detects the walk-in switch (LH) is stuck on.
Fail-safe	Inhibits the rear one-touch walk-in operation function from being driven for the second-row seat (LH).

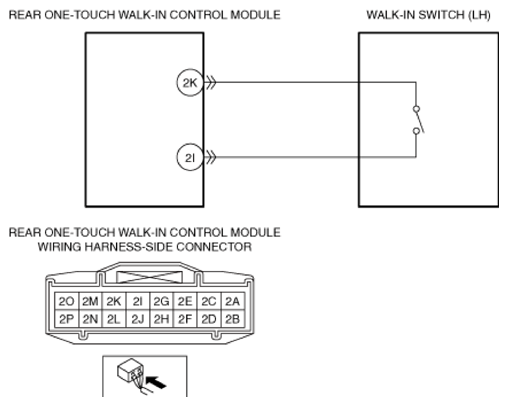

Possible cause	Rear one-touch walk-in control module connector or terminal malfunction Short to ground in wiring harness between rear one-touch walk-in control module terminal 2K and walk-in switch (LH) Walk-in switch (LH) malfunction Rear one-touch walk-in control module malfunction

Courtesy of MAZDA MOTORS CORP.
