Steering Lock Unit Removal/Installation: Notes

Replacement Part

1. Disconnect the negative battery terminal.
2. Remove the following parts:
   1. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
   2. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
   3. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
   4. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
   5. Hood release lever
   6. Driver-side lower panel
   7. Driver-side knee air bag module
   8. Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] .)
   9. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
   10. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
   11. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
   12. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
   13. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
   14. Rear console
   15. Center lower panel
   16. Driver-side air bag module
   17. Steering wheel
   18. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
   19. Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
   20. Clock spring
   21. Light switch
   22. Wiper and washer switch
   23. Joint cover
   24. Steering shaft

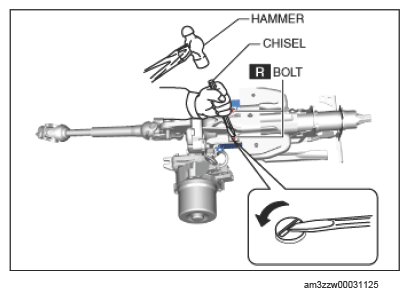

3. Make a groove on the heads of the bolts by punching them with a chisel using a hammer.

   Courtesy of MAZDA MOTORS CORP.

4. Remove the bolts by rotating them counterclockwise.

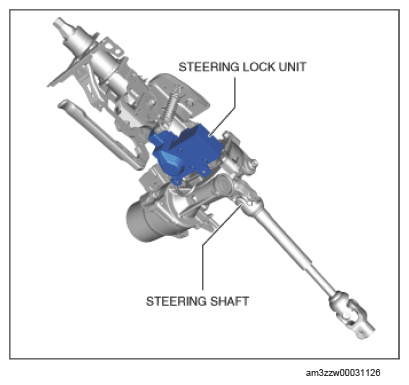

5. Remove the steering lock unit.

   Courtesy of MAZDA MOTORS CORP.

6. Install in the reverse order of removal. (See STEERING LOCK UNIT INSTALLATION NOTE .)
7. If the steering lock unit is replaced, perform the immobilizer system-related part programming.
