DTC B100B-11: Steering Lock Unit Circuit Malfunction [Body Control Module (BCM)]: Notes
WARNING:
- If this DTC is detected, the system will enter the fail-safe function to ensure safety. If the ignition is switched OFF (LOCK) after a specified time has elapsed or the vehicle has been driven for a specified period of time or more while in the fail-safe mode, the ignition will remain switched off and the engine cannot be started. Therefore, perform the malfunction diagnosis while the engine can be started. In addition, after having performed the malfunction diagnosis, verify that this DTC is not detected with the steering wheel locked. If the DTC is not detected, the system returns to normal from the fail-safe function.
NOTE:

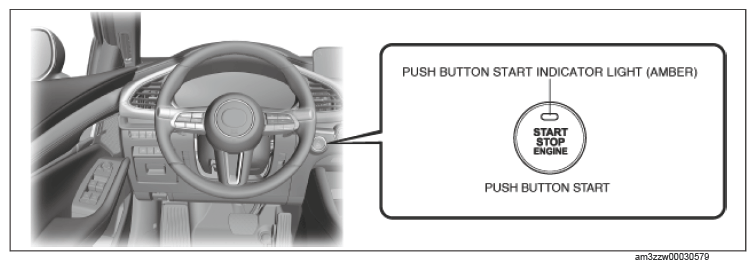

- When changing to the fail-safe mode, the push button start indicator light (amber) flashes.
