DTC B1512-87: Communication Error With Indicator Unit [Body Control Module (BCM)]: Outline

DTC B1512:87 - BODY CONTROL MODULE (BCM) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Communication error with indicator unit
Detection condition	The body control module (BCM) cannot receive the signals from the indicator unit.
Fail-safe	Not applicable

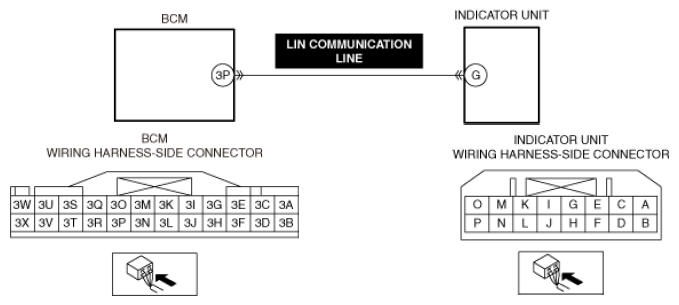

Possible cause	Indicator unit connector or terminal malfunction Body control module (BCM) connector or terminal malfunction Short to ground in indicator unit LIN communication line Open circuit in indicator unit LIN communication line Indicator unit malfunction Body control module (BCM) malfunction
Courtesy of MAZDA MOTORS CORP.
