Without Telematics Communication Unit: Outline
DTC B1514:86 - BODY CONTROL MODULE (US) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Collision signal error |
| Detection condition |
- The door-electrical supply unit (passenger's side) received error signal from SAS control module.
|
| Fail-safe |
Not applicable |
| Possible cause |
- DTCs are stored in the SAS control module.
- SAS control module connector or terminal malfunction
- Door-electrical supply unit (passenger's side) connector or terminal malfunction

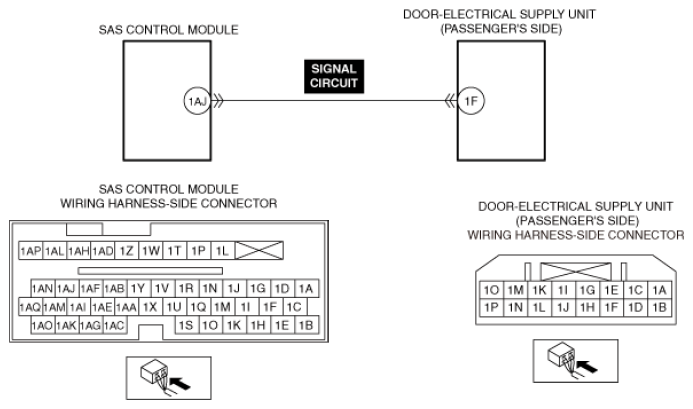

- Short to ground in SAS control module signal circuit
- Open circuit in SAS control module signal circuit
- SAS control module malfunction
- Door-electrical supply unit (passenger's side) malfunction
- Body control module (BCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
