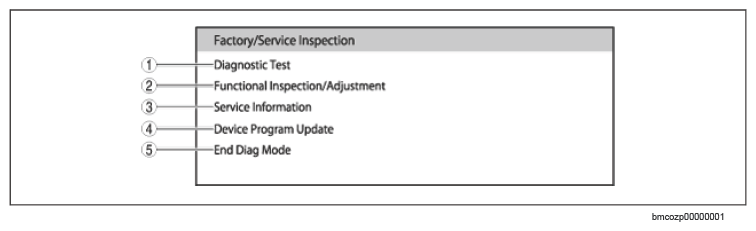

Diagnostic Assist Function Initial Screen
DIAGNOSTIC ASSIST FUNCTION DESCRIPTION
| No. | Indication on center display | Content/function |
|---|---|---|
| 1 | Diagnostic Test | Performs troubleshooting for the audio control unit (ACU) and nearby devices. |
| 2 | Functional Inspection/Adjustment | Performs inspection of each function and adjustment of the settings. |
| 3 | Service Information | Backs-up user information and displays device information. |
| 4 | Device Program Update | Updates the programs for each device. |
| 5 | End Diag Mode | Ends the diagnostic assist function. |
