Bracket Installation Note

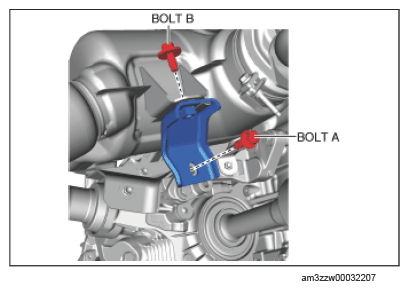

  1. Install the bracket to the exhaust manifold (WU-TWC) and temporarily tighten bolts A and B.
    G14580601Courtesy of MAZDA MOTORS CORP.
  2. Completely tighten the bolts in the order of A and B.
