Transfer Bracket Installation Note

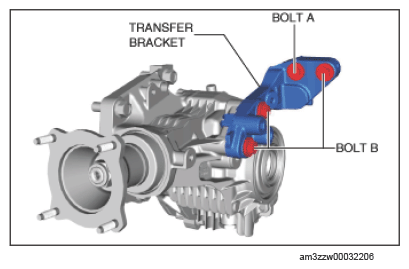

  1. Install the transfer bracket to the transfer and temporarily tighten bolts A and B.
    G14580600Courtesy of MAZDA MOTORS CORP.
  2. Completely tighten the bolts in the order of A and B.
