DTC B1142-14: MAZDA Emergency Assistance Control Module Power Supply Circuit (IG1) Malfunction [MAZDA Emergency Assistance Control Module]: Outline
DTC B1142:14 (MAZDA EMERGENCY ASSISTANCE CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Mazda EMERGENCY ASSISTANCE control module power supply circuit (IG1) malfunction |
| Detection condition |
- The Mazda EMERGENCY ASSISTANCE control module detects an open circuit or a short to ground in the power supply circuit (IG1).
|
| Fail-safe |
Not applicable |
| Possible cause |
- IG1 relay No. 2 malfunction
- DTCs are stored in the following modules.
- Body control module (BCM)
- PCM
- Mazda M Hybrid battery (with Mazda M Hybrid)
- DC-DC converter (Mazda M Hybrid) (with Mazda M Hybrid)
- Integrated starter generator (ISG) (with Mazda M Hybrid)
- Battery malfunction
- Generator malfunction (without Mazda M Hybrid)
- Mazda EMERGENCY ASSISTANCE control module connector or terminal malfunction

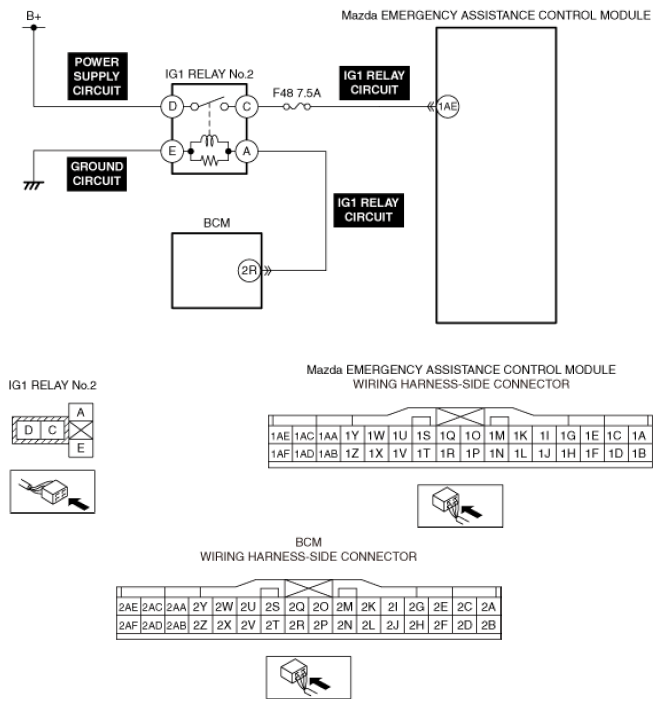

- Short to ground or open circuit in Mazda EMERGENCY ASSISTANCE control module IG1 relay circuit
- Mazda EMERGENCY ASSISTANCE control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
