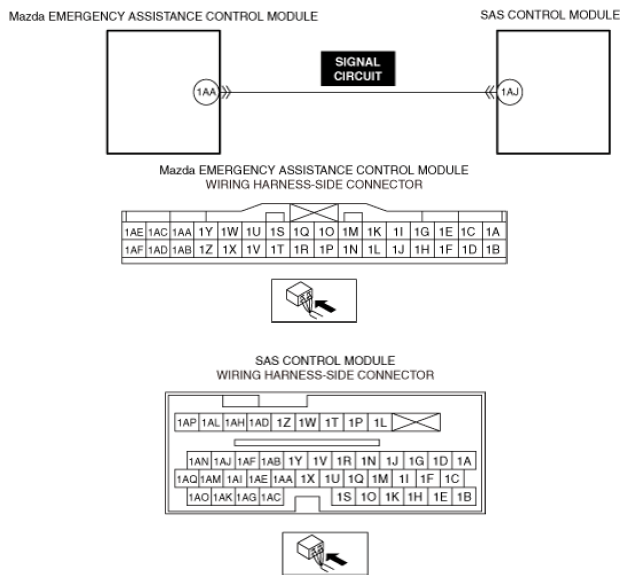

DTC B1207-23: Event Notification Signal 2 Circuit Malfunction [MAZDA Emergency Assistance Control Module]: Outline

DTC B1207:23 (MAZDA EMERGENCY ASSISTANCE CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Event notification signal 2 circuit malfunction
Detection condition	The Mazda EMERGENCY ASSISTANCE control module detects a short to ground in the event notification signal 2 circuit.
Fail-safe	Not applicable
Possible cause	DTCs are stored in the SAS control module. SAS control module malfunction SAS control module connector or terminal malfunction Mazda EMERGENCY ASSISTANCE control module connector or terminal malfunction Short to ground in SAS control module signal circuit SAS control module malfunction Mazda EMERGENCY ASSISTANCE control module malfunction
Courtesy of MAZDA MOTORS CORP.
