Auto Leveling Control Module Removal/Installation: L.H.D.

  1. Disconnect the negative battery terminal.
  2. Remove the following parts:
    1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    3. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    5. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    6. Passenger-side lower panel

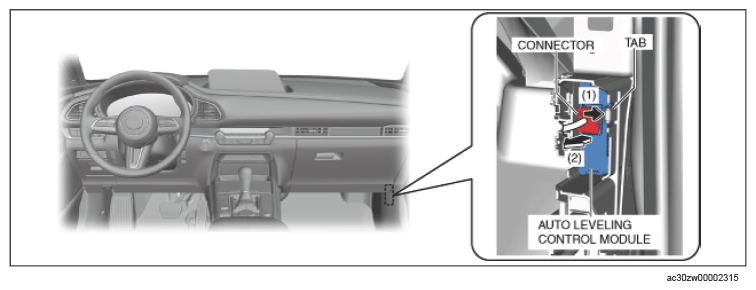

  3. While pressing tab of the bracket in the direction of arrows (1) shown in the figure, pull the auto leveling control module connector in the direction of arrow (2) to pull out the auto leveling control module from the bracket.
    G15658363Courtesy of MAZDA MOTORS CORP.

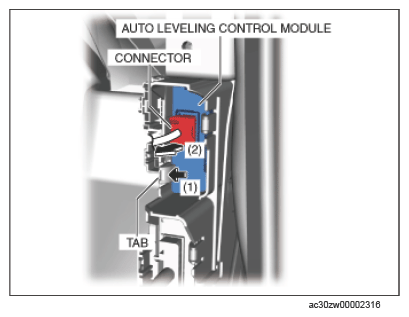

  4. While pressing tab of the bracket in the direction of arrows (1) shown in the figure, pull the auto leveling control module connector in the direction of arrow (2) to pull out the auto leveling control module from the bracket.
    G15658364Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the connector and remove the auto leveling control module.
  6. Install in the reverse order of removal.
  7. If the auto leveling control module is replaced, perform the following procedure.
    1. Switch the ignition ON (engine off) to complete the global central configuration (GCC) for the auto leveling control module.
    2. Clear the DTC. (See CLEARING DTC .)
    3. Perform the headlight auto leveling system initialization.
