Inside Cabin: R.H.D.

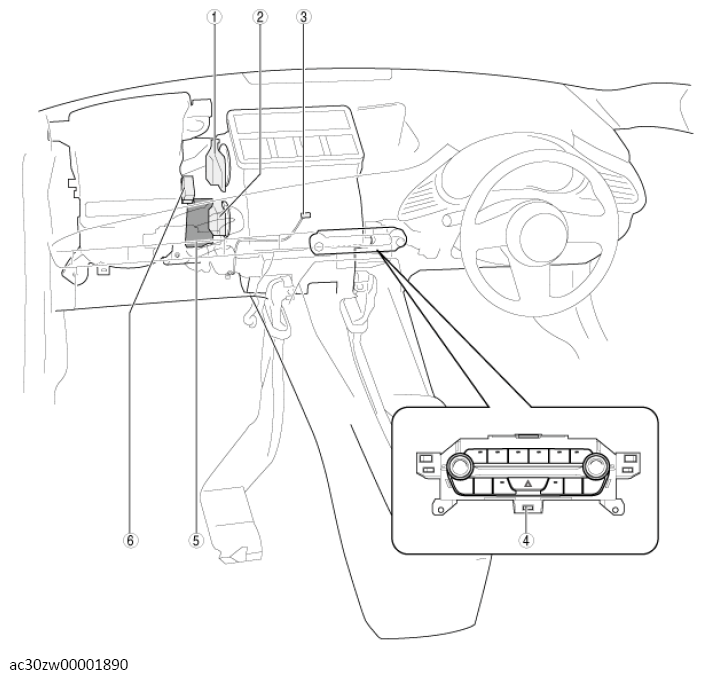

Fig 1: HVAC Control System Components Location (Manual Air Conditioner) - Inside Cabin (R.H.D.)

Courtesy of MAZDA MOTORS CORP.

HVAC CONTROL SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Airflow mode actuator (See AIRFLOW MODE ACTUATOR INSPECTION (MANUAL A/C) .)
2	Air mix actuator (See AIR MIX ACTUATOR INSPECTION (MANUAL A/C) .)
3	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR INSPECTION (MANUAL A/C) .)
4	Climate control unit (See CLIMATE CONTROL UNIT INSPECTION (MANUAL A/C) .)
5	Dash-electrical supply unit
6	Air intake actuator (See AIR INTAKE ACTUATOR INSPECTION (MANUAL A/C) .)
