Off-Road Traction Assist Switch Inspection [AWD]
- Remove the OFF-ROAD TRACTION ASSIST switch. (See OFF-ROAD TRACTION ASSIST SWITCH REMOVAL/INSTALLATION [AWD] .)
- Verify that the resistance between the OFF-ROAD TRACTION ASSIST switch terminals B and C is as indicated in the table.
- If not as indicated in the table, replace the OFF-ROAD TRACTION ASSIST switch.

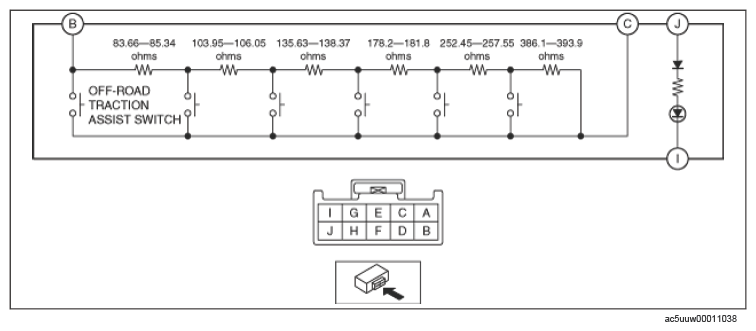

 Courtesy of MAZDA MOTORS CORP.
|
OFF-ROAD TRACTION ASSIST SWITCH SPECIFICATION
| Terminal |
Test condition |
Resistance (ohms) |
| B-C |
Switch pressed |
0 |
| Switch released |
1139.99-1163.01 |
- Apply battery voltage to OFF-ROAD TRACTION ASSIST switch terminal J, and connect terminal I to ground.
- Verify that the LED illuminates.
- If there is any malfunction, replace the OFF-ROAD TRACTION ASSIST switch.
