Glass/Windows/Mirrors Location Index

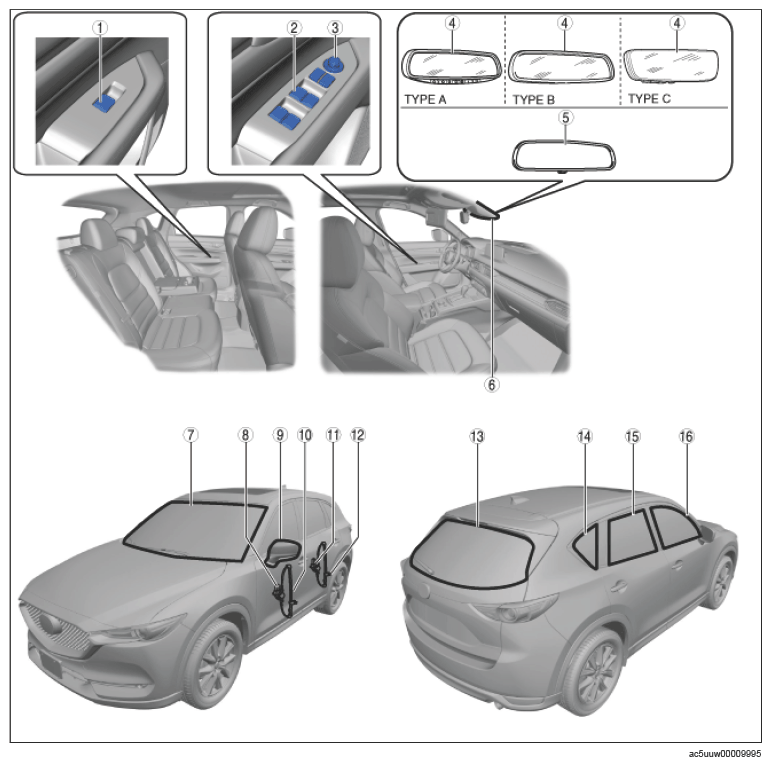

Fig 1: Glass, Windows And Mirrors Components Location

Courtesy of MAZDA MOTORS CORP.

GLASS/WINDOWS/MIRRORS COMPONENT OPERATIONS

Component No.	Refer to
1	Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .) (See POWER WINDOW SUBSWITCH INSPECTION .)
2	Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .) (See POWER WINDOW MAIN SWITCH INSPECTION .) (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .)
3	Power outer mirror switch (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION .) (See POWER OUTER MIRROR SWITCH INSPECTION .)
4	Auto-dimming rearview mirror (See AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION .) (See AUTO-DIMMING REARVIEW MIRROR INSPECTION .)
5	Rearview mirror (See REARVIEW MIRROR REMOVAL/INSTALLATION .)
6	Sensor cover (See SENSOR COVER REMOVAL/INSTALLATION .)
7	Windshield (See WINDSHIELD REMOVAL .) (See WINDSHIELD INSTALLATION .)
8	Front power window motor (See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION .) (See FRONT POWER WINDOW MOTOR INSPECTION .)
9	Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .) (See RETRACT/RETURN MOTOR REMOVAL/INSTALLATION .) (See POWER OUTER MIRROR INSPECTION .) (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .) (See OUTER MIRROR GLASS INSPECTION .) (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION .)
10	Front power window regulator (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)
11	Rear power window motor (See REAR POWER WINDOW MOTOR REMOVAL/INSTALLATION .) (See REAR POWER WINDOW MOTOR INSPECTION .)
12	Rear power window regulator (See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)
13	Rear window glass (See REAR WINDOW GLASS REMOVAL .) (See REAR WINDOW GLASS INSTALLATION .) (See REAR WINDOW DEFOGGER/HEATED OUTER MIRROR/WINDSHIELD WIPER DE-ICER SYSTEM INSPECTION .) (See REAR WINDOW DEFOGGER INSPECTION .) (See REAR WINDOW DEFOGGER REPAIR .) (See GLASS/WINDOWS/MIRRORS PERSONALIZATION FEATURES SETTING PROCEDURE .)
14	Quarter window glass (See QUARTER WINDOW GLASS REMOVAL .) (See QUARTER WINDOW GLASS INSTALLATION .)
15	Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
16	Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
