Generator Disassembly/Assembly (VIN Y): Notes

Special Service Tool (SST)

49 L018 002 Serrated bit

Courtesy of MAZDA MOTORS CORP.

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.

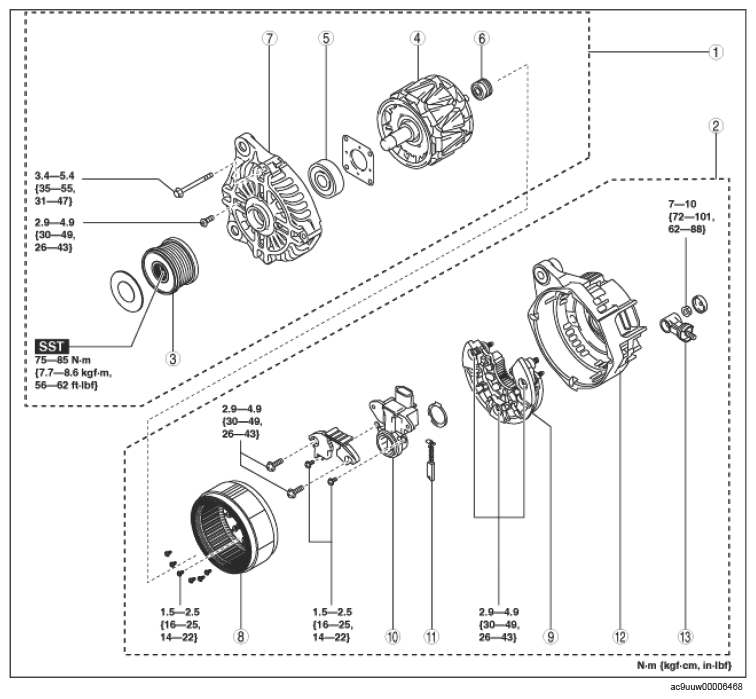

   Fig 1: Generator Components Location With Torque Specification (VIN Y)

   Courtesy of MAZDA MOTORS CORP.
   GENERATOR COMPONENT OPERATIONS



   Component No.	Refer to
   1	Rotor component
   2	Stator coil component
   3	Pulley (See Pulley Disassembly/Assembly Note .)
   4	Rotor
   5	Front bearing
   6	Rear bearing
   7	Front cover
   8	Stator coil
   9	Rectifier
   10	Brush holder
   11	Brush (See Brush Disassembly Note .) (See Brush Assembly Note .)
   12	Rear cover
   13	Terminal B component
