Tie-rod End Assembly Note

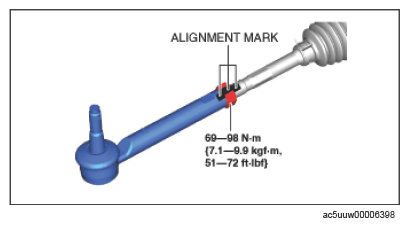

  1. Align the alignment marks made before removal and assemble the tie-rod end to the tie rod.
    Fig 1: Tie-Rod Bolt With Torque Specification
    G15640778Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • When newly replacing a tie-rod end, place alignment marks on the new part in the same position as the remove tie-rod end.
      G15640779Courtesy of MAZDA MOTORS CORP.
    • If there are no alignment marks, go to the next step.
  2. Adjust dimension A shown in the figure to the standard, then assemble the tie-rod end.
    G15640780Courtesy of MAZDA MOTORS CORP.

    Standard

    8.6-21.6 mm {0.34-0.85 in}
