Engine Compartment

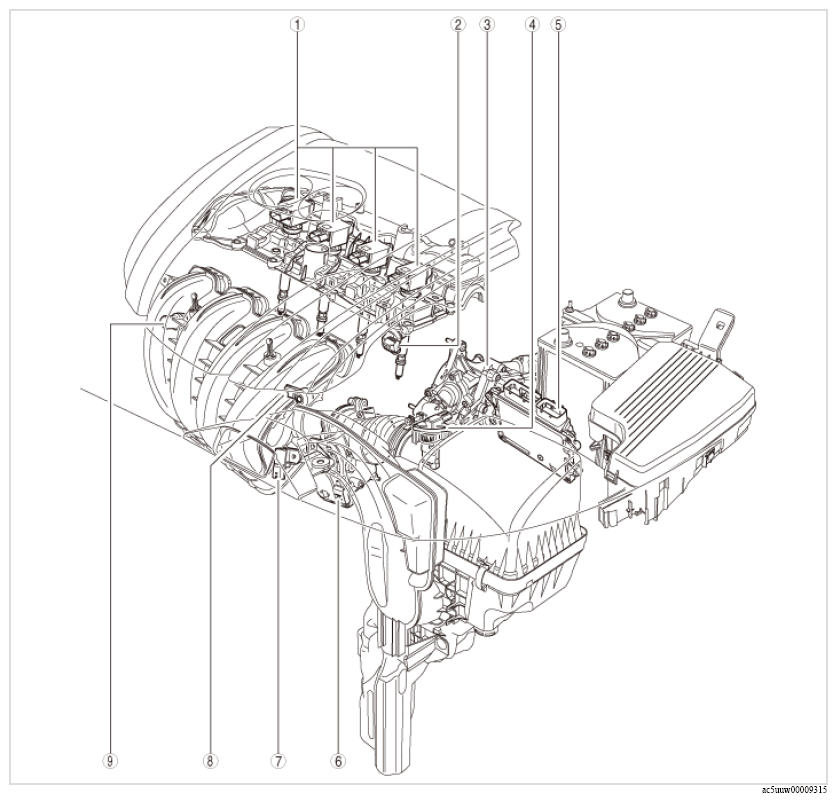

Fig 1: Control System Components Location - Engine Compartment (SKYACTIV-G 2.5 - With Cylinder Deactivation)
G13111259Courtesy of MAZDA MOTORS CORP.
CONTROL SYSTEM COMPONENT OPERATIONS

Component No. Refer to
1 Ion sensor
(See ION SENSOR REMOVAL/INSTALLATION .)
(See ION SENSOR INSPECTION .)
2 Intake CMP sensor
(See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
(See CAMSHAFT POSITION (CMP) SENSOR INSPECTION .)
3 Coolant control valve position sensor
(See COOLANT CONTROL VALVE POSITION SENSOR REMOVAL/INSTALLATION .)
(See COOLANT CONTROL VALVE POSITION SENSOR INSPECTION .)
4 MAF sensor/IAT sensor No. 1
(See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 1 REMOVAL/INSTALLATION .)
(See MASS AIR FLOW (MAF) SENSOR INSPECTION .)
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .)
5 PCM (BARO sensor)
(See PCM REMOVAL/INSTALLATION .)
(See PCM INSPECTION .)
(See PCM CONFIGURATION (USING READ/WRITE FUNCTION) .)
(See PCM CONFIGURATION (USING AS-BUILT DATA) .)
(See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION .)
(See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION .)
6 TP sensor
(See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION .)
(See THROTTLE POSITION (TP) SENSOR INSPECTION .)
7 MAP sensor/IAT sensor No. 2
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 2 REMOVAL/INSTALLATION .)
(See MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR INSPECTION .)
(See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION .)
8 KS
(See KNOCK SENSOR (KS) REMOVAL/INSTALLATION .)
(See KNOCK SENSOR (KS) INSPECTION .)
9 Fuel pressure sensor
(See FUEL PRESSURE SENSOR REMOVAL/INSTALLATION .)
(See FUEL PRESSURE SENSOR INSPECTION .)
