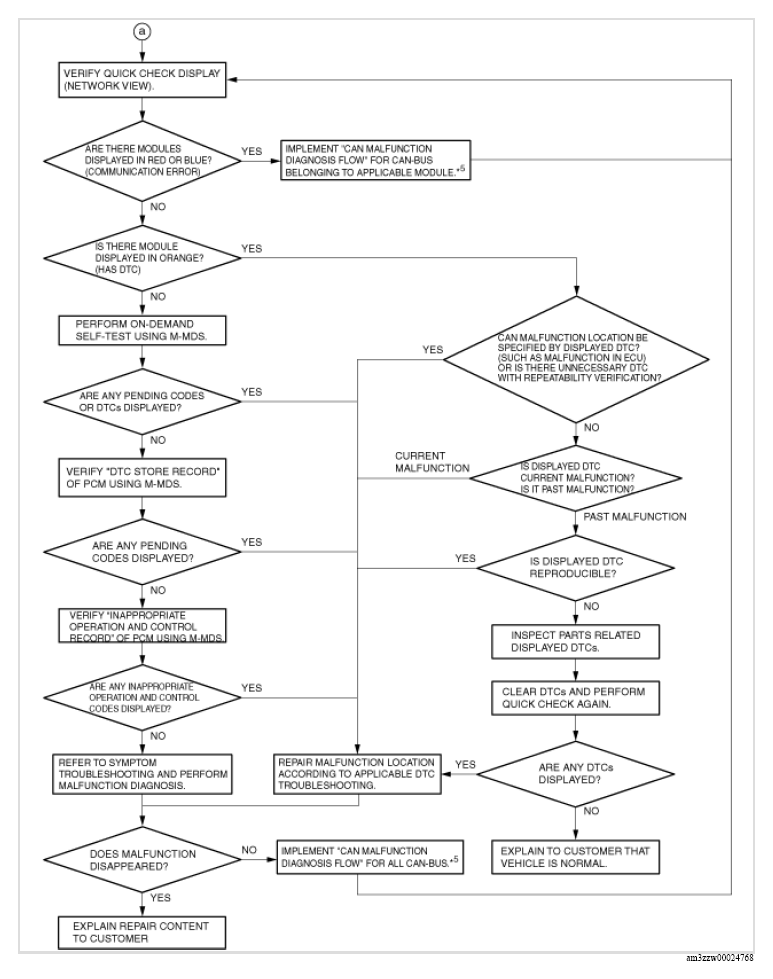

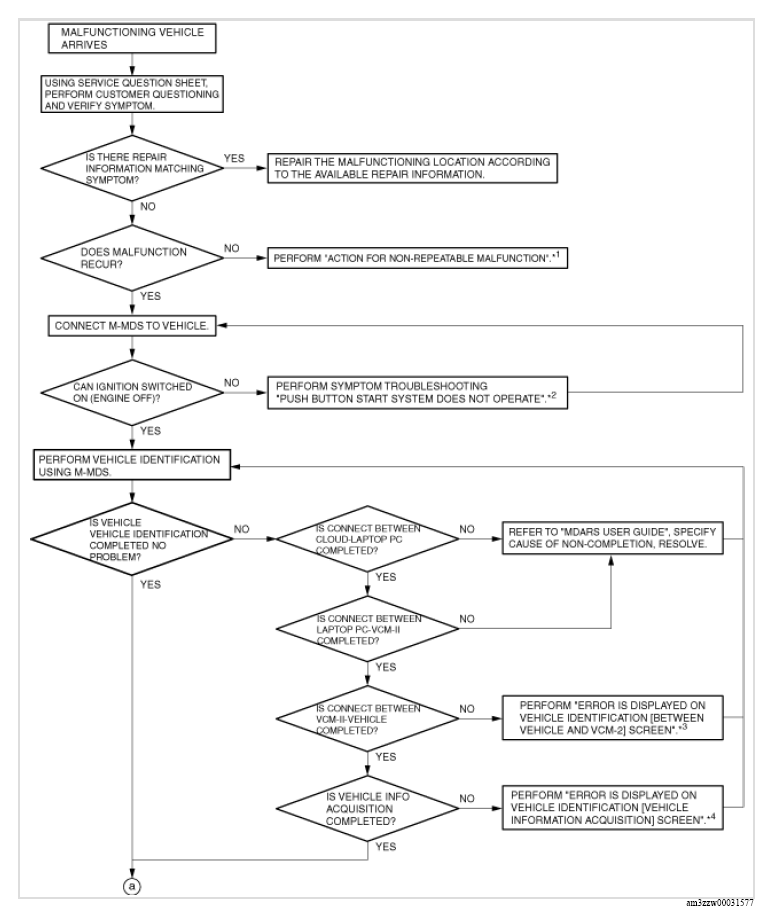

Troubleshooting Procedure

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.

*1: (See ACTION FOR NON-REPEATABLE MALFUNCTION .)

*2: (See PUSH BUTTON START SYSTEM DOES NOT OPERATE [SECURITY AND LOCKS] .)

*3: (See ERROR IS DISPLAYED ON VEHICLE IDENTIFICATION [BETWEEN VEHICLE AND VCM-2] SCREEN [TYPE-B] .)

*4: (See ERROR IS DISPLAYED ON VEHICLE IDENTIFICATION [VEHICLE INFORMATION ACQUISITION] SCREEN [TYPE-B] .)

*5: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [TYPE-B] .)
