Front Power Window Motor Inspection: RH
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Disconnect the front power window motor connector. (See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION .)

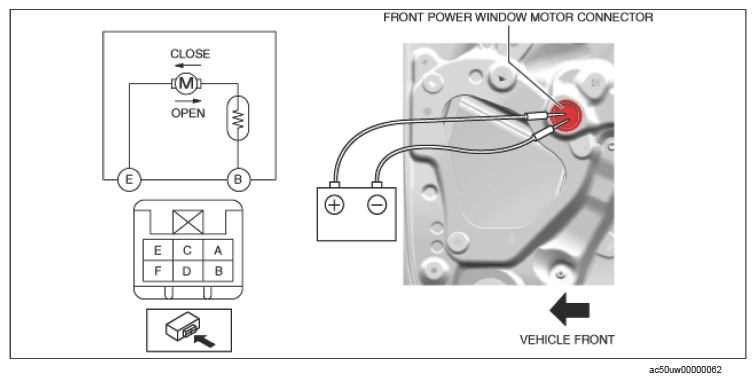

- Apply battery positive voltage and connect the ground to the front power window motor terminals as indicated in the table below and verify the operation condition.
TERMINAL SPECIFICATION
| B+ Terminal | Ground | Terminal Operation |
|---|---|---|
| B | E | Close |
| E | B | Open |
- If the power window motor does not operate as indicated in the table, replace it. (See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION .)
