Power Window Main Switch Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

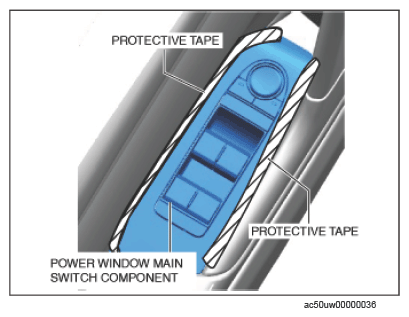

  2. Affix the protective tape to the position shown in the figure below to prevent scratches and damage.
    G15742659Courtesy of MAZDA MOTORS CORP.
  3. Using a remover tool, remove the tab shown in the figure below.
    G15742660Courtesy of MAZDA MOTORS CORP.

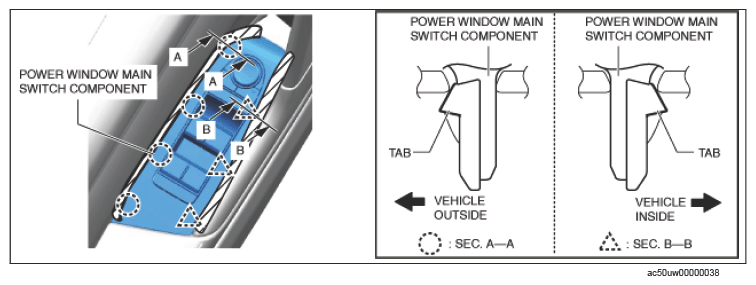

  4. Using a remover tool, remove the tabs shown in the figure below.
    G15742661Courtesy of MAZDA MOTORS CORP.

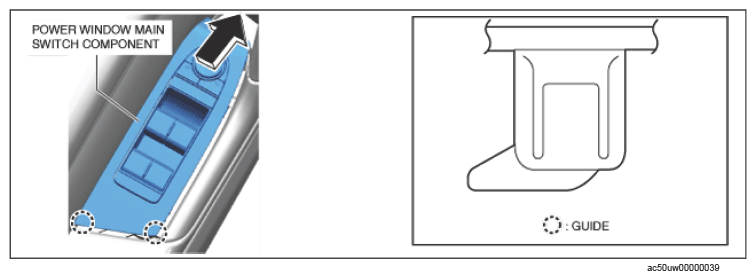

  5. Move the power window main switch component in the direction of the arrow below and detach the guides.
    G15742662Courtesy of MAZDA MOTORS CORP.

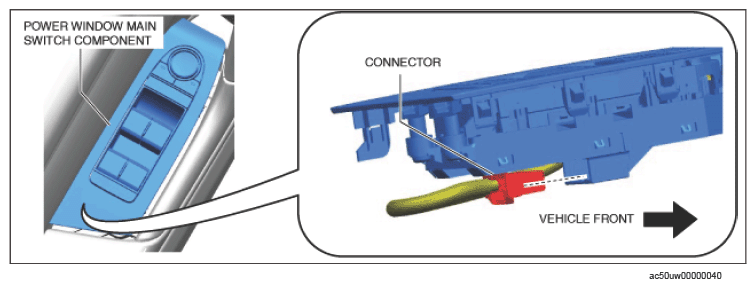

  6. Disconnect the connector.
    G15742663Courtesy of MAZDA MOTORS CORP.
  7. Remove the power window main switch component from the front door trim.

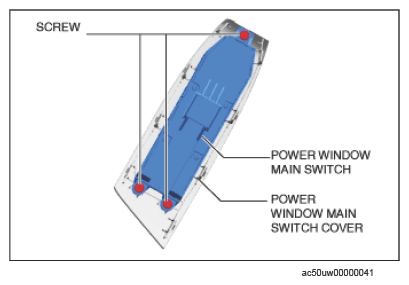

  8. Remove the screws.
    G15742664Courtesy of MAZDA MOTORS CORP.
  9. Remove the power window main switch from the power window main switch cover.
  10. Install in the reverse order of removal.
