Rear Power Window Motor Removal/Installation: Notes

  1. Perform the rear door glass preparation. (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts.
    1. Power window subswitch component (rear) (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
    2. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
    3. Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
    4. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
    5. Rear power window regulator (See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)
    NOTE:
    • If work is performed without supporting the drum housing of the rear power window regulator, the drum housing may come off from the rear power window regulator. Support the drum housing as you work so that it does not come off.
  4. Remove the bolts.

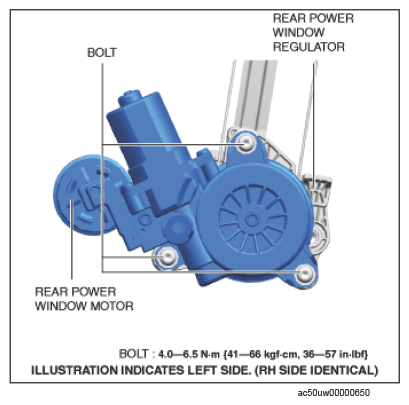

    Fig 1: Rear Power Window Motor, Rear Power Window Regulator And Bolts With Torque Specifications
    G15742712Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear power window motor.
  6. Install in the reverse order of removal. (See REAR POWER WINDOW MOTOR INSTALLATION NOTE .)
  7. Perform the power window system initialization. (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .)
