Rear Window Defogger Repair
- Clean and degrease the repaired area of the rear window defogger.

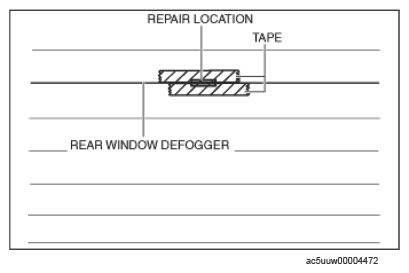

- Apply tape on both sides along the repaired area of the rear window defogger.
 Courtesy of MAZDA MOTORS CORP.
|
- Apply commercially available silver paint using a fine-tipped tool such as a small brush or a drawing pen.
- Peel off the tape, taking care not to damage the area where the commercially available silver paint has been applied.
CAUTION:
- Do not operate the rear window defogger until the repaired area is completely dried to prevent a malfunction.
- Follow the instructions for the commercially available silver paint and dry the repaired area.
