Sensor Cover Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

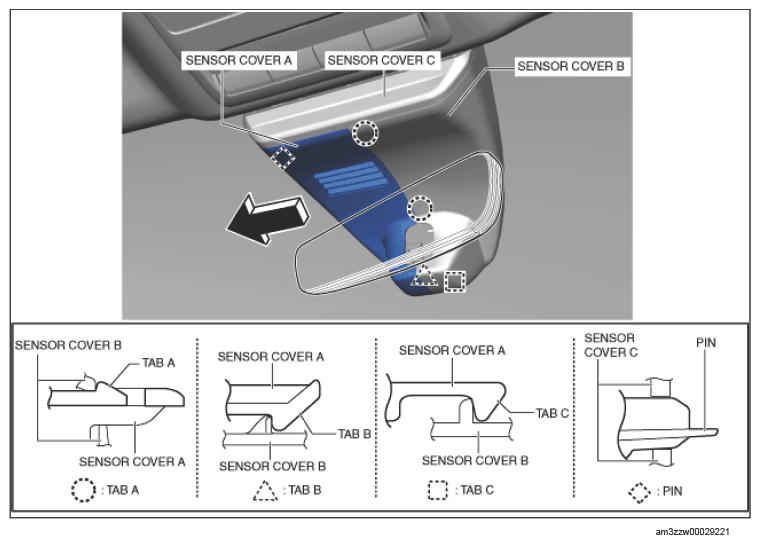

  2. Pull the sensor cover A in the direction of the arrow shown in the figure below and remove sensor cover A while detaching the pin and tabs A, tab B, and tab C.
    G15742740Courtesy of MAZDA MOTORS CORP.

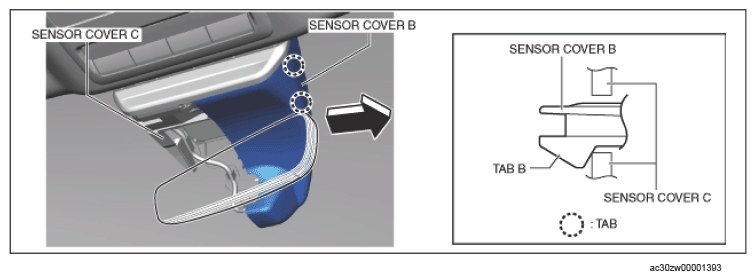

  3. Pull sensor cover B in the direction of the arrow shown in the figure below and remove sensor cover B while detaching the tabs.
    G15742741Courtesy of MAZDA MOTORS CORP.

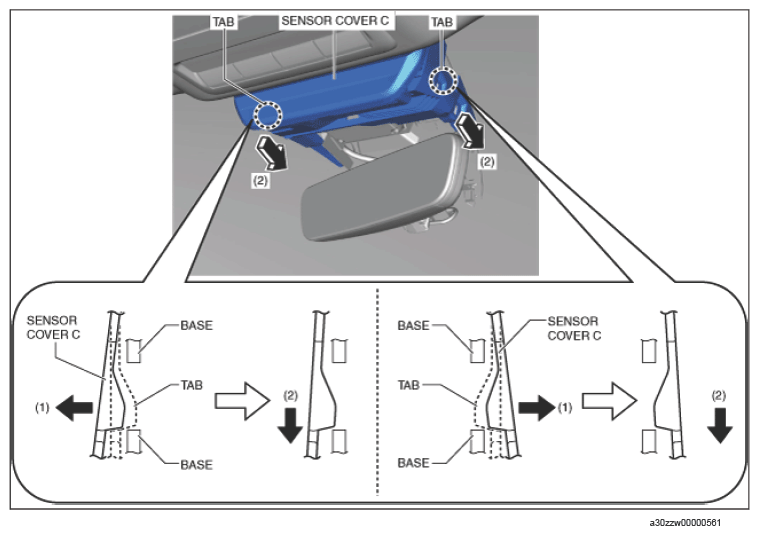

  4. Move the tab of sensor cover C in the direction of arrow (1) shown in the figure below.
    G15742742Courtesy of MAZDA MOTORS CORP.
  5. Pull sensor cover C in the direction of arrow (2) shown in the figure above and remove sensor cover C and the indicator unit as one unit while detaching the tabs.

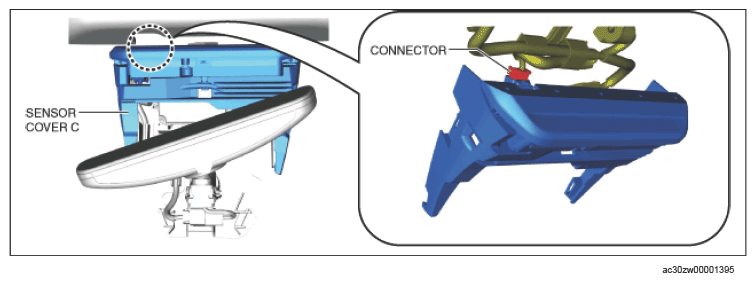

  6. Disconnect the connector.
    G15742743Courtesy of MAZDA MOTORS CORP.
    NOTE:
  7. Install in the reverse order of removal.
