Brake Pipe Removal Note

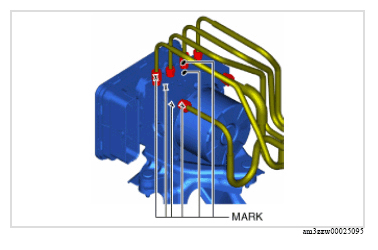

  1. Place an alignment mark on the brake pipe and DSC HU/Control Module.
    G13176281Courtesy of MAZDA MOTORS CORP.
  2. Apply protective tape to the connector to prevent brake fluid from entering.
  3. Disconnect the brake pipes.
