Front Accessory Socket Removal/Installation

WARNING:

Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)

Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts.
1. Select lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
2. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
4. Front console upper panel (See FRONT CONSOLE UPPER PANEL REMOVAL/INSTALLATION .)
5. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
6. Upper panel (without wireless charger (Qi)) (See UPPER PANEL REMOVAL/INSTALLATION .)
7. Wireless charger (Qi) (with wireless charger (Qi)) (See WIRELESS CHARGER (QI) REMOVAL/INSTALLATION .)
8. Console-up (See CONSOLE-UP REMOVAL/INSTALLATION .)
9. Rear vent duct No. 3 (with rear vent duct) (See REAR VENT DUCT REMOVAL/INSTALLATION .)
10. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
11. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
12. Center lower panel (See CENTER LOWER PANEL REMOVAL/INSTALLATION .)

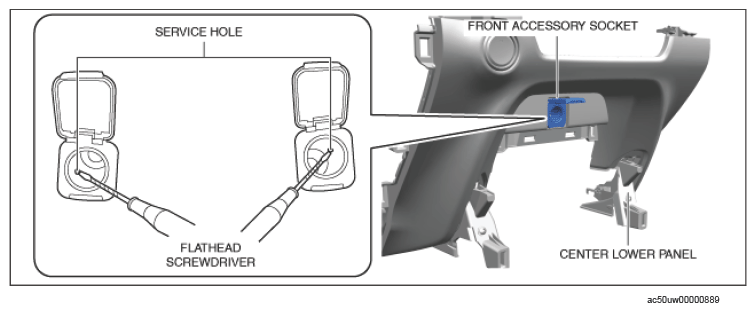

Insert a tape-wrapped flathead screwdriver into the service hole.

Courtesy of MAZDA MOTORS CORP.

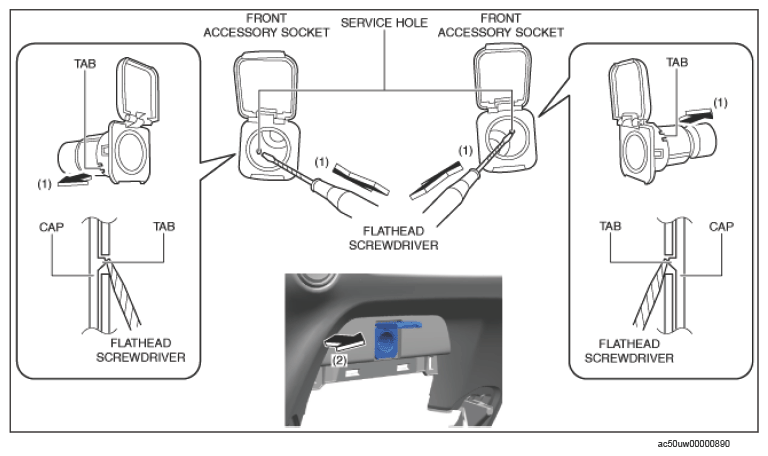

While pressing the cap tab in the direction of the arrow (1) shown in the figure below using a tape-wrapped flathead screwdriver, press the front accessory socket in the direction of the arrow (2) to detach the cap tab from the front accessory socket.

Courtesy of MAZDA MOTORS CORP.

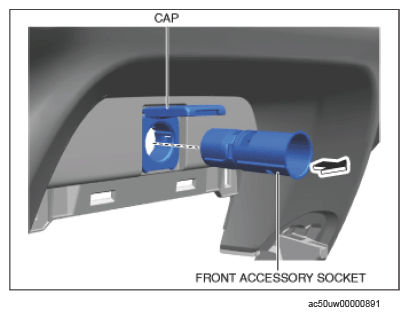

Pull the front accessory socket in the direction of the arrow shown in the figure below and remove it.

Courtesy of MAZDA MOTORS CORP.

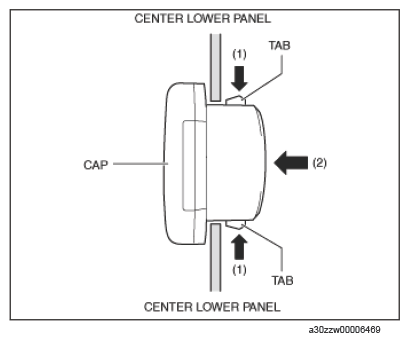

While pressing the cap tabs in the direction of the arrows (1) shown in the figure below, press the cap in the direction of the arrow (2) to detach the cap tabs from the center lower panel.

Courtesy of MAZDA MOTORS CORP.
Remove the cap.
Install in the reverse order of removal.
