Fuse Block Installation: Notes

Replacement Part

Band
Quantity: 1
Location of use: Fuse block
NOTE:
  • When replacing the fuse block, it is necessary to switch terminals from the fuse block terminal prior to replacement to the fuse block terminal on the replacement. When switching terminals, ready the replacement fuse block before pulling out the terminal of the fuse block prior to replacement. This is because it is necessary to switch the terminals one at a time so that the installation positions are not mistaken.

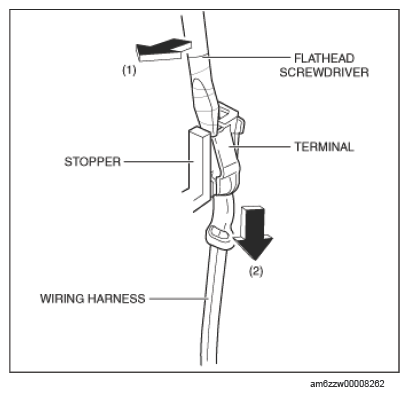

  1. Move the flathead screwdriver in the direction of the arrow (1) shown in the figure below, and pull the wiring harness in the direction of the arrow (2) while pressing the stopper to detach the fuse terminal from the stopper.
    G15743527Courtesy of MAZDA MOTORS CORP.
  2. Relocate all fuse terminals to the new fuse block.
    CAUTION:

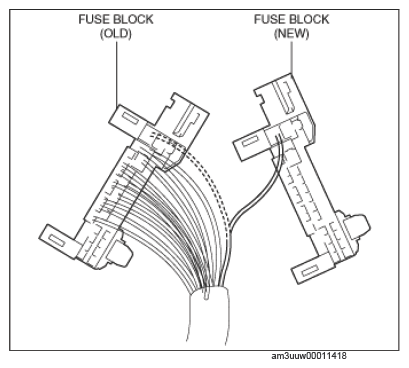

    • If terminals are installed incorrectly, it could damage electrical accessories and burn wiring harnesses. When relocating terminals after replacing the fuse block, line up the fuse blocks of old and news parts and always verify each of the wiring harnesses in the wiring diagram so that the installation positions are correct.
      G15743528Courtesy of MAZDA MOTORS CORP.
    • A terminal disconnection could cause electronic components and the system to not operate normally due to poor contact. After terminal relocation, lightly pull the wiring harnesses to verify that they cannot be pulled out.

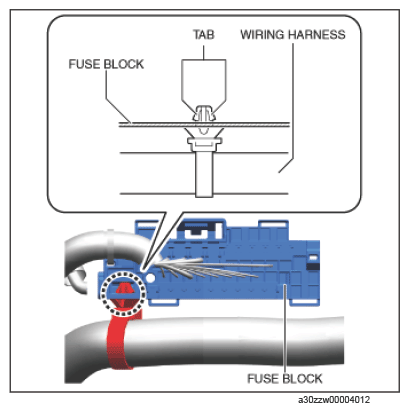

  3. Install the wiring harness clip tabs to the fuse block.
    G15743529Courtesy of MAZDA MOTORS CORP.

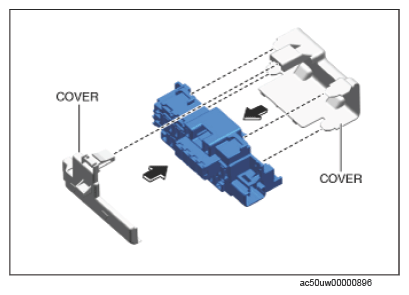

  4. Install the cover.
    G15743530Courtesy of MAZDA MOTORS CORP.

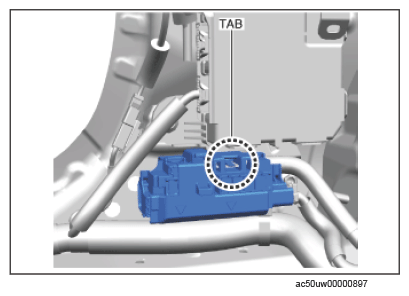

  5. Install the fuse block tab to the bracket.
    G15743531Courtesy of MAZDA MOTORS CORP.

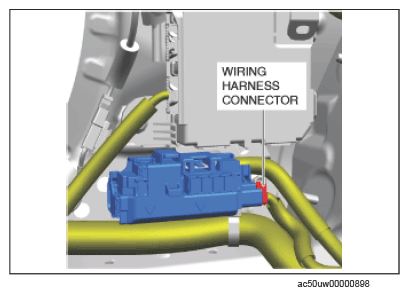

  6. Connect the wiring harness connectors.
    G15743532Courtesy of MAZDA MOTORS CORP.

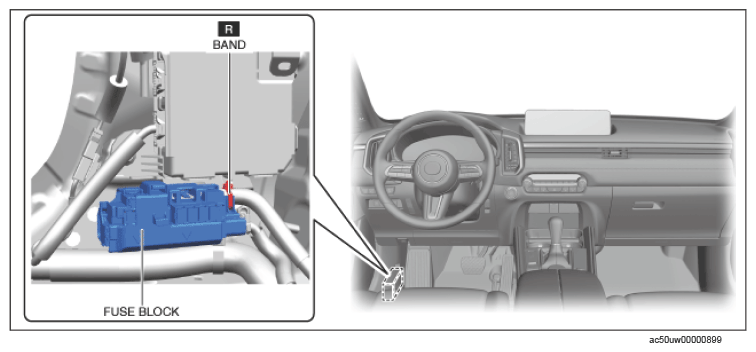

  7. Install the bands shown in the figure below.
    G15743533Courtesy of MAZDA MOTORS CORP.
  8. Install all the fuses.
  9. Install the following parts:
    1. Front side trim (LH). (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    2. Scuff plate (LH). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  10. Perform the "Verify Fuse Block Replacement". (See VERIFY FUSE BLOCK REPLACEMENT .)
  11. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
