Fuse Block Removal

Replacement Part

Band
Quantity: 1
Location of use: Fuse block

NOTE:

When replacing the fuse block, it is necessary to switch terminals from the fuse block terminal prior to replacement to the fuse block terminal on the replacement. When switching terminals, ready the replacement fuse block before pulling out the terminal of the fuse block prior to replacement. This is because it is necessary to switch the terminals one at a time so that the installation positions are not mistaken.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Scuff plate (LH). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Front side trim (LH). (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
Remove all the fuses.

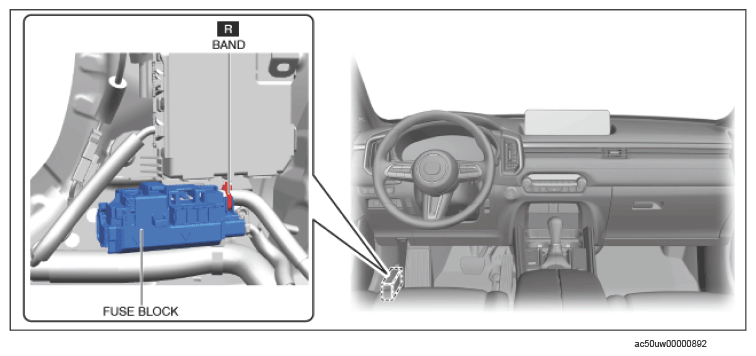

Cut the bands shown in the figure below.

Courtesy of MAZDA MOTORS CORP.

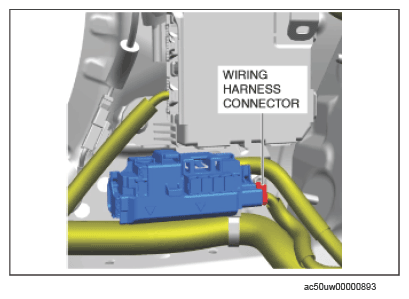

Disconnect the wiring harness connectors.

Courtesy of MAZDA MOTORS CORP.

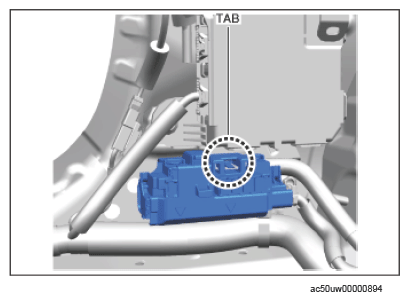

Remove the fuse block tab from the bracket.

Courtesy of MAZDA MOTORS CORP.
Set the removed fuse block aside so that it does not scratch the vehicle and parts.
Remove the cover from the fuse block.

Courtesy of MAZDA MOTORS CORP.

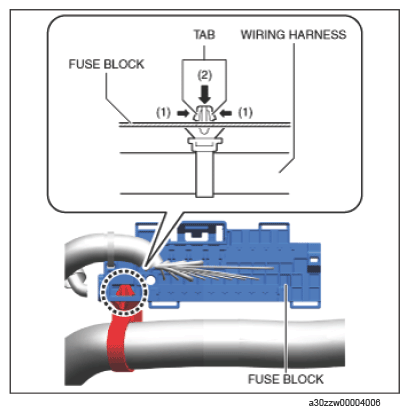

While pressing the wiring harness clip tab in the direction of the arrows (1) shown in the figure below, push out the wiring harness clip in the direction of the arrow (2) shown in the figure below to detach the wiring harness clip tabs from the fuse block.

Courtesy of MAZDA MOTORS CORP.
Pull out the wiring harness clip.
