Power System Location Index

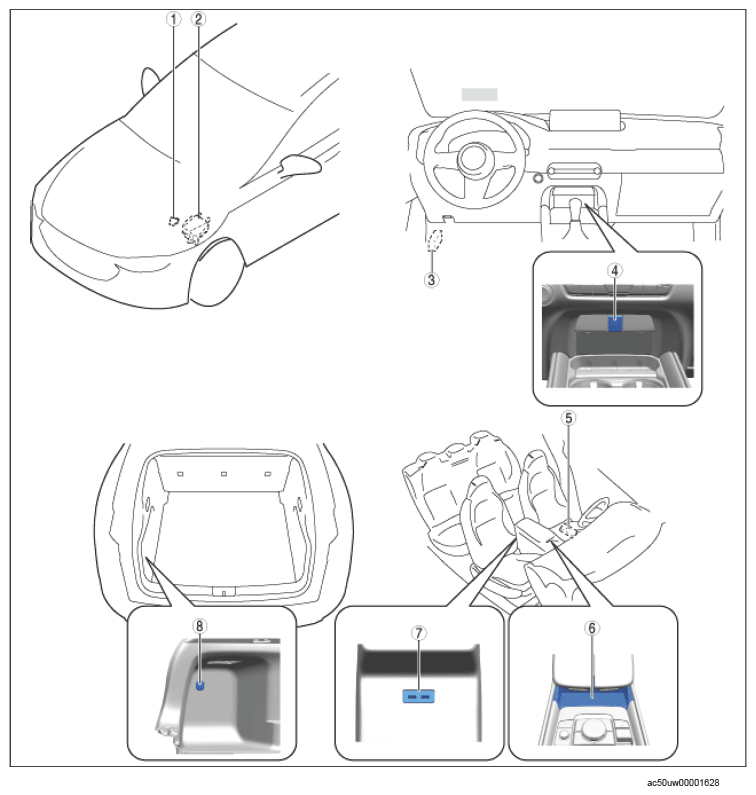

Fig 1: Power System Components Location

Courtesy of MAZDA MOTORS CORP.

POWER SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Main fuse (See MAIN FUSE REMOVAL/INSTALLATION .)
2	Relay and fuse block (See RELAY AND FUSE BLOCK INSTALLATION .) (See FUSE BLOCK REMOVAL .) (See FUSE SERVICE CAUTIONS .) (See RELAY LOCATION .) (See RELAY INSPECTION .)
3	Fuse block (See FUSE BLOCK INSTALLATION .) (See FUSE BLOCK REMOVAL .) (See FUSE SERVICE CAUTIONS .)
4	Front accessory socket (See FRONT ACCESSORY SOCKET REMOVAL/INSTALLATION .) (See FRONT ACCESSORY SOCKET INSPECTION .)
5	Backup power supply (with backup power supply) (See BACKUP POWER SUPPLY REMOVAL/INSTALLATION .) (See BACKUP POWER SUPPLY INSPECTION .)
6	Wireless charger (Qi) (with wireless charger (Qi)) (See WIRELESS CHARGER (QI) REMOVAL/INSTALLATION .) (See WIRELESS CHARGER (QI) INSPECTION .) (See WIRELESS CHARGER (QI) DISABLING PROCEDURE .)
7	USB power outlet (with USB power outlet) (See USB POWER OUTLET REMOVAL/INSTALLATION .) (See USB POWER OUTLET INSPECTION .)
8	Rear accessory socket (See REAR ACCESSORY SOCKET REMOVAL/INSTALLATION .) (See REAR ACCESSORY SOCKET INSPECTION .)
