Steering Gear And Linkage Installation Bolt Installation Note

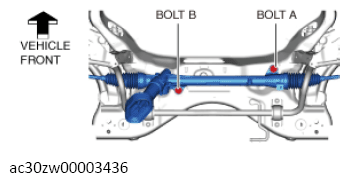

  1. Temporarily tighten the steering gear and linkage installation bolts.
    G13558963Courtesy of MAZDA MOTORS CORP.
  2. Tighten bolt A.
  3. Tighten bolt B.
