Mass Air Flow (MAF) Sensor/Intake Air Temperature (IAT) Sensor No. 1 Removal/Installation

NOTE:

The IAT sensor No. 1 is built into the MAF sensor. When replacing the IAT sensor No. 1, replace the MAF sensor/IAT sensor No. 1.

Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Disconnect the MAF sensor/IAT sensor No. 1 connector.

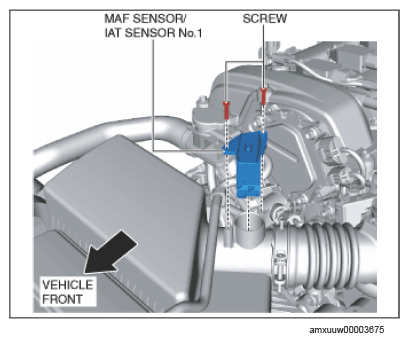

Remove the screws.

Courtesy of MAZDA MOTORS CORP.
Remove the MAF sensor/IAT sensor No. 1.
Install in the reverse order of removal.
