On-Board Diagnostic Wiring Diagram [Start Stop Unit]
>>
Start Stop Unit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

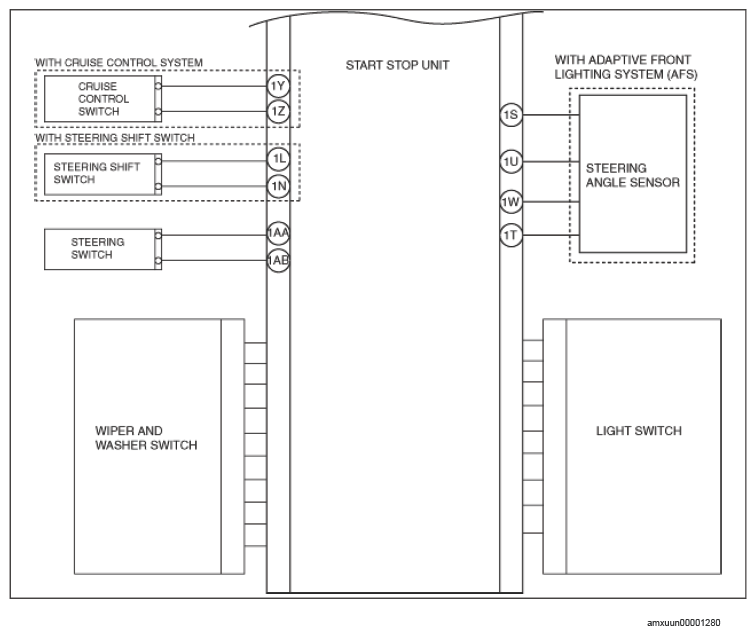

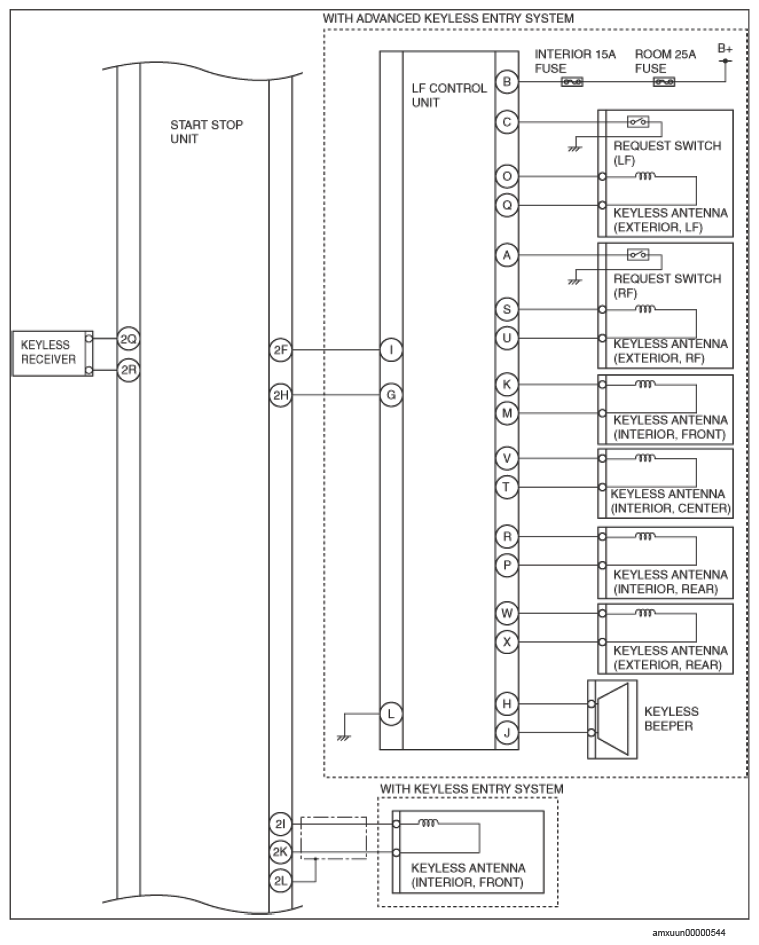

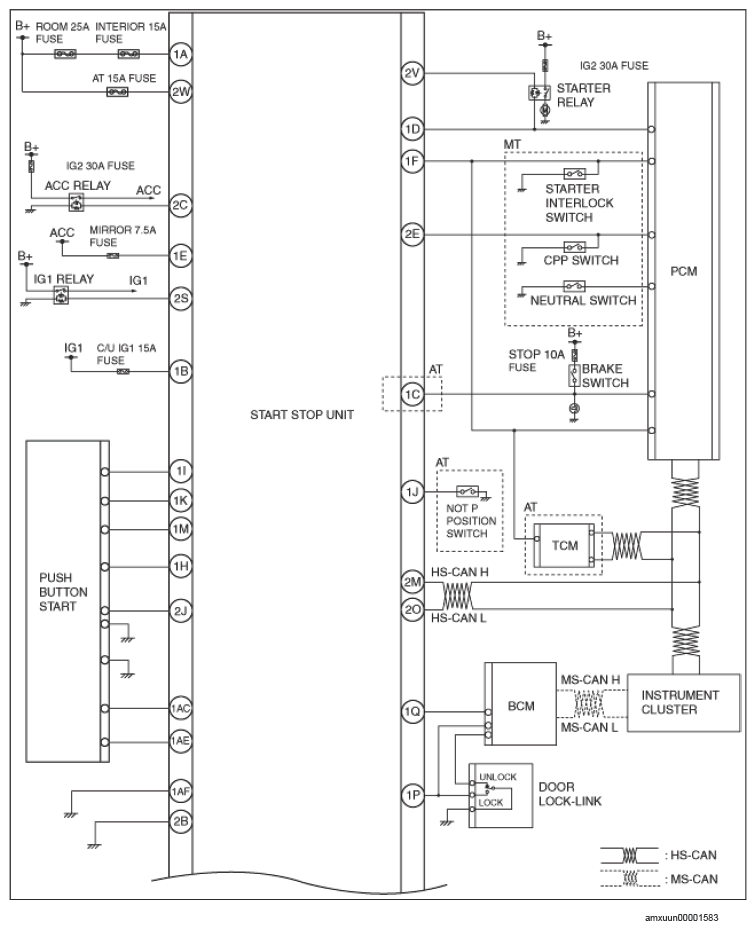

Start Stop Unit
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
