Charging System Location Index (VIN M)

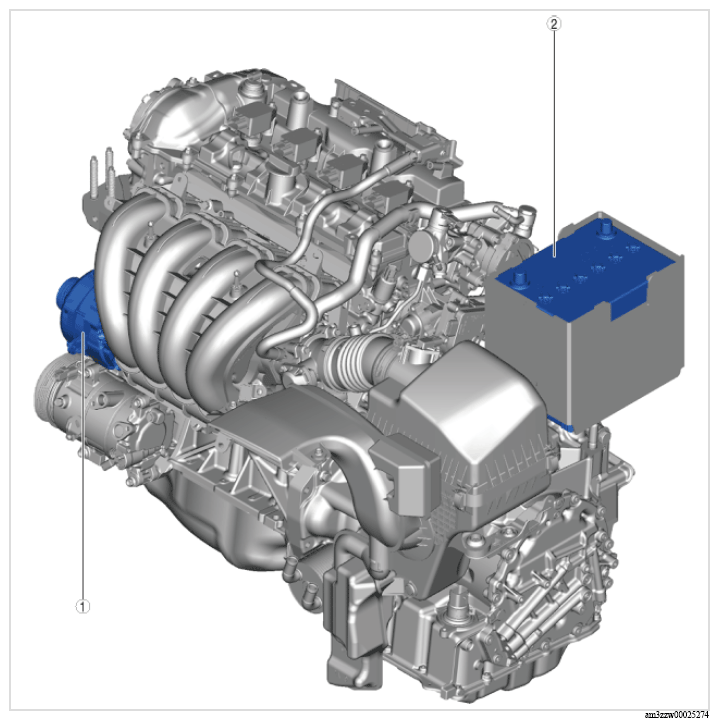

Fig 1: Charging System Components Location

Courtesy of MAZDA MOTORS CORP.

CHARGING SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Generator (See GENERATOR REMOVAL/INSTALLATION (VIN M) .) (See GENERATOR INSPECTION (VIN M) .) (See GENERATOR DISASSEMBLY/ASSEMBLY (VIN M) .)
2	Battery (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .) (See BATTERY REMOVAL/INSTALLATION (VIN M) .) (See BATTERY INSPECTION .) (See BATTERY RECHARGING .)
