Steering Gear and Linkage Installation Bolt Installation Note

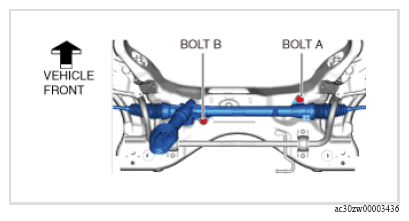

  1. Temporarily tighten the steering gear and linkage installation bolts.
    G16375432Courtesy of MAZDA MOTORS CORP.
  2. Tighten bolt A.
  3. Tighten bolt B.
