DTC B1495-87: Lin Communication Error Between Power Liftgate (PLG) Control Module And Foot-Motion Detection Unit
B1495:87 (BCM) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
LIN communication error between power liftgate (PLG) control module and foot-motion detection unit |
| Detection condition |
- The power liftgate (PLG) control module detected that LIN communication line between power liftgate (PLG) control module and foot-motion detection unit malfunction.
|
| Fail-safe |
- Stops the hands-free liftgate operation.
|
| Possible cause |
- Body control module (BCM) configuration data error (See
CONFIGURATION.)
- Malfunction in wiring harness (including connector/terminal) between foot-motion detection unit and power liftgate (PLG) control module (See CIRCUIT INSPECTION
.) (See CONNECTOR INSPECTION
.)
- Foot-motion detection unit malfunction (Refer to [FOOT-MOTION DETECTION UNIT INSPECTION
] in service information).
- Power liftgate (PLG) control module malfunction (Refer to [POWER LIFTGATE (PLG) CONTROL MODULE REMOVAL/INSTALLATION
] in service information).
- Body control module (BCM) malfunction (Refer to [BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION
] in service information).
|
| Repeatability verification procedure |
- Clear the DTC recorded in the memory. (See CLEARING DTC
.)
|

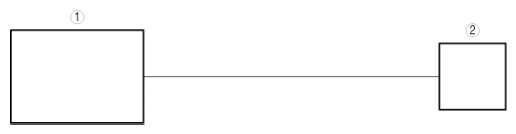

 Courtesy of MAZDA MOTORS CORP.
|
| 1 |
Power liftgate (PLG) control module |
| 2 |
Foot-motion detection unit |
