Front scuff plate removal note

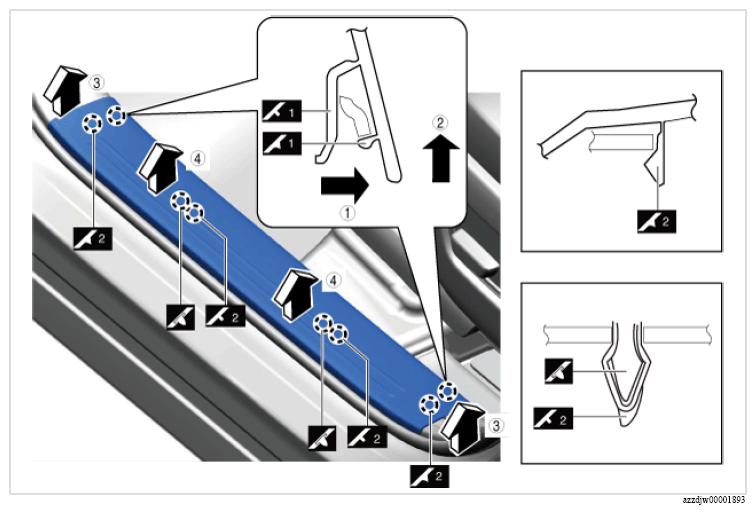

  1. Remove the front scuff plate as shown in the figure.
G16707710Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
(1) (2)... Servicing procedure
