Remove Front Side Trim (Right Side): Notes

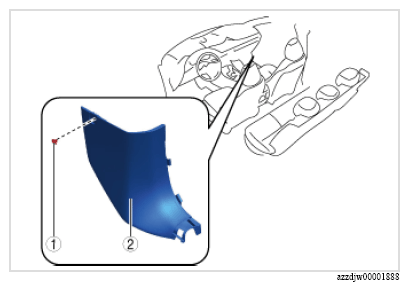

  1. Remove using the procedure shown in the figure.
G16707711Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Fastener
2 Front side trim
(See Front side trim removal note ).
