Opening capsule cover note

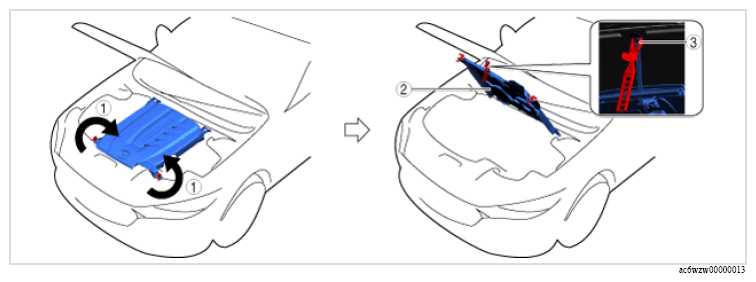

  1. Open the capsule cover as shown in the figure.
    G16691800Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    (1) (2)... Servicing procedure
