Remove Air Cleaner Component

  1. Remove in the order indicated in the table.

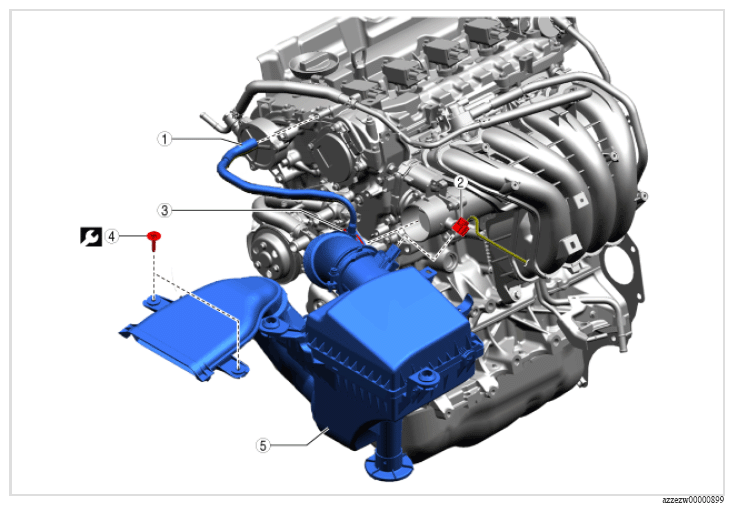

    Fig 1: Air Cleaner Component, Hose Clamp And Bolt With Torque Specifications
    G16691866Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATIONS

    Step Part name
    1 Ventilation hose -
    2 Connector -
    3 Hose clamp 3 N.m {30 kgf.cm, 26 in.lbf}
    4 Bolt 9.5 N.m {95 kgf.cm, 82 in.lbf}
    5 Air cleaner component -
