Boot Band Assembly Note

  1. Assemble the boot band to the boot.
  2. Crimp the boot band using the SST.

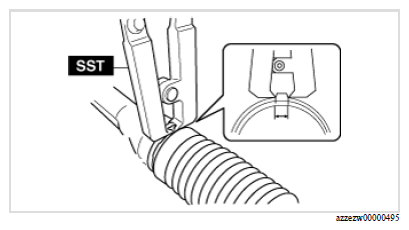

    • The figure shows the left side (same as right side).
    G16712170Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    49 T025 001
    3.0-3.8 mm {0.12-0.14 in}
  3. Verify that crimp of the boot band is within the standard.
  4. Rotate the boot by hand and verify that the boot is securely installed by the boot band.
