Intermediate Shaft Component Connection Note

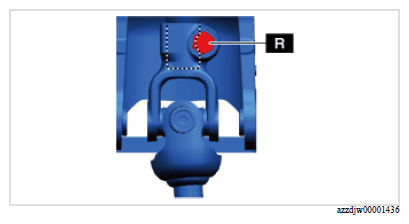

  1. Align with the U-shape groove of the steering column and install a joint bolt.
G16712238Courtesy of MAZDA MOTORS CORP.
