Steering Wheel And Column Removal/Installation [With Electric Tilt Telescopic Unit]: Notes

D-code

WARNING:
  • If the steering mechanism is turned from lock to lock continuously or the steering rack terminal limit is reached repeatedly, such high-load steering action increases the temperature of the steering column (to approx.85°C {185°F}), causing severe burns. Be careful when handling the steering column.
CAUTION:
  • If the intermediate shaft is connected to the steering gear (pinion) before installing the steering column to the dashboard member, the weight of the steering column could cause damage to the intermediate shaft slider/bush/yoke. Always perform the procedure according to the appropriate troubleshooting information .
  • A new steering column is shipped with it set to the position for delivery. Maintain this condition until the steering column is completely installed to the dashboard member so as to avoid damage during transportation and installation.
  • When removing/installing the steering column, keep the wiring harness away from the steering column installation area so as to prevent the steering column from being caught in the wiring harness and damaged.
NOTE:
  • When installing the replacement part, do not rotate the steering shaft until the installation is completed.
  1. Remove the cover assembly. (right side) (See COWL GRILLE REMOVAL/INSTALLATION .)
  2. Disconnect the negative lead-acid battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Driver side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Driver side decoration panel component (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Passenger side decoration panel component (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Driver side lower panel component (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION (L.H.D). .)
    6. Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION .)
    7. Driver side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION .)
    8. Upper column cover (See UPPER COLUMN COVER REMOVAL/INSTALLATION .)
  4. Remove using the procedure shown in the figure below.
    CAUTION:
    • Do not remove the steering wheel using a hammer so as to prevent damaging the steering column.
    NOTE:
    • Straighten the steering wheel.

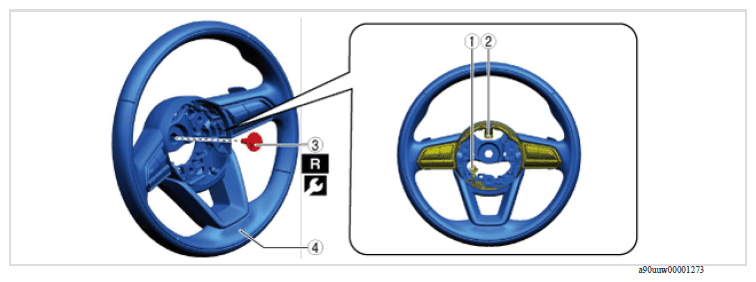

    Fig 1: Steering Wheel Components Location With Torque Specifications
    G16712242Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATIONS

    Procedure Part name Applicable condition
    1 Heated steering wheel control unit Continuous - -
    2 Steering switch connector Continuous - -
    3 Lockbolt Continuous Replacement part 47.5 N.m {4.85 kgf.m, 35.05 ft.lbf}
    4 Steering wheel component Continuous - -
  5. Remove the lower column cover. (See LOWER COLUMN COVER REMOVAL/INSTALLATION .)
  6. Remove using the procedure shown in the figure.

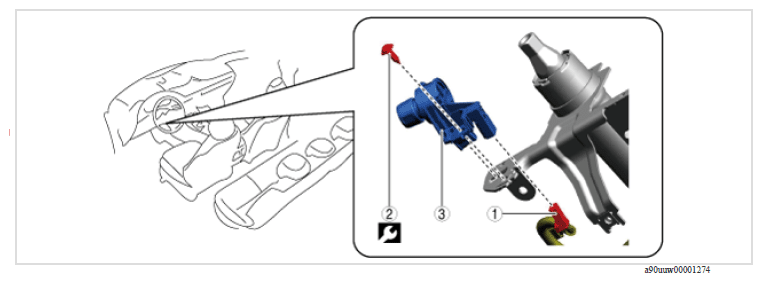

    Fig 2: Electric Tilt/Telescopic Switch Screw With Torque Specifications
    G16712243Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATIONS

    Procedure Part name Applicable condition
    1 Connector Continuous -
    2 Screw Continuous 2.5 N.m {25 kgf.cm, 22 in.lbf}
    3 Electric tilt/telescopic switch Continuous -
  7. Remove the following parts:
    1. Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION .)
    2. Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION [L.H.D.] .)
    3. Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION [L.H.D.] .)
  8. Remove using the procedure shown in the figure.

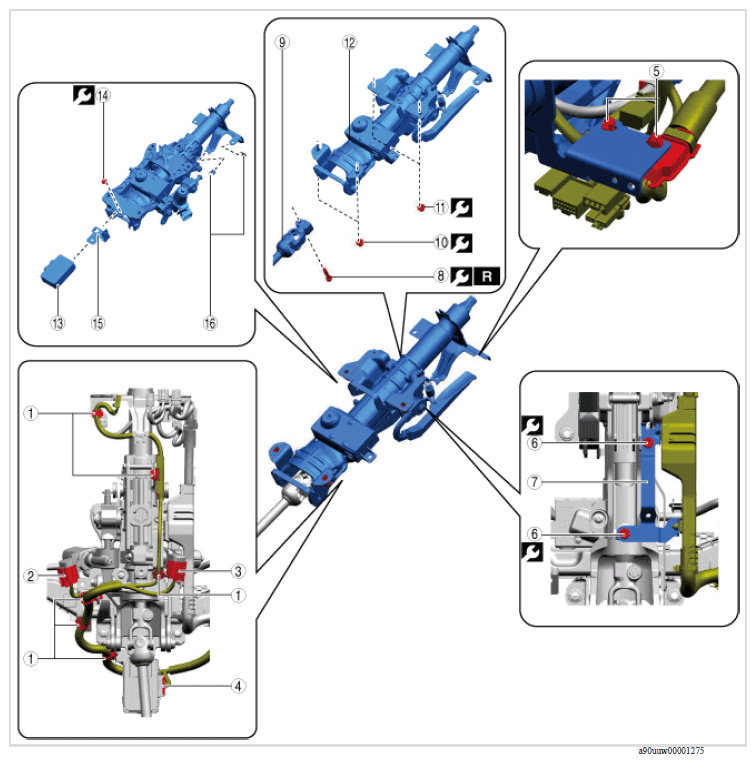

    Fig 3: Steering Column Components Location With Torque Specifications
    G16712244Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATIONS

    Procedure Part name Applicable condition
    1 Wiring harness clip Continuous - -
    2 Tilt motor connector Continuous - -
    3 Telescopic motor connector Continuous - -
    4 Electric tilt/telescopic unit connector Continuous - -
    5 Wiring harness clip Continuous - -
    6 Bolt Continuous - 9.5 N.m {95 kgf.cm, 82 in.lbf}
    7 Bracket Continuous - -
    8 Joint bolt Continuous Replacement part 29 N.m {2.95 kgf.m, 21.4 ft.lbf}
    9 Intermediate shaft component
    (See INTERMEDIATE SHAFT COMPONENT CONNECTION NOTE )    		 Continuous - -
    10 Nut Continuous - 20.5 N.m {2.1 kgf.m, 15.1 ft.lbf}
    11 Nut Continuous - 20.5 N.m {2.1 kgf.m, 15.1 ft.lbf}
    12 Steering column component Continuous - -
    13 Electric tilt/telescopic unit
    (See ELECTRIC TILT TELESCOPIC UNIT INSTALLATION NOTE )    		 Continuous - -
    14 Nut Continuous - 9.5 N.m {95 kgf.cm, 82 in.lbf}
    15 Bracket Continuous - -
    16 Spring nut
    (See SPRING AND NUT INSTALLATION NOTE )    		 Continuous - -
  9. Install in the reverse order of removal.
  10. If the steering wheel and column is replaced, perform the calibrating electric tilt/telescoping position. (Refer to [ Calibrating Electric tilt/telescoping position] in the appropriate troubleshooting information )
  11. Perform the power liftgate initialization. (See POWER LIFTGATE (PLG) INITIALIZATION PROCEDURE .)
  12. Perform the panorama sunroof system initialization. (See PANORAMA SUNROOF SYSTEM INITIALIZATION .)
