Remove Driver Side Air Bag Module: Notes
WARNING:
- Handling the driver side air bag module improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the air bag module.
NOTE:

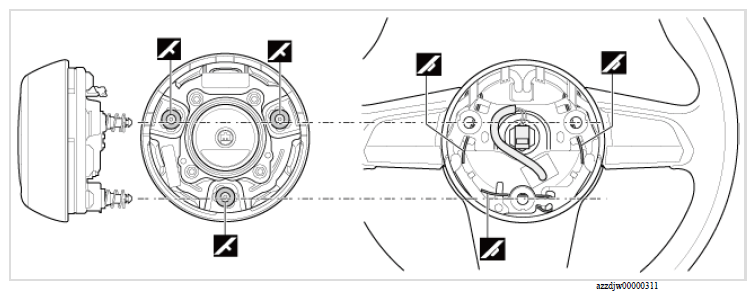

- The driver side air bag module is engaged by the pins of the driver side air bag module and the snap springs of the steering wheel.
- Remove using the procedure shown in the figure.

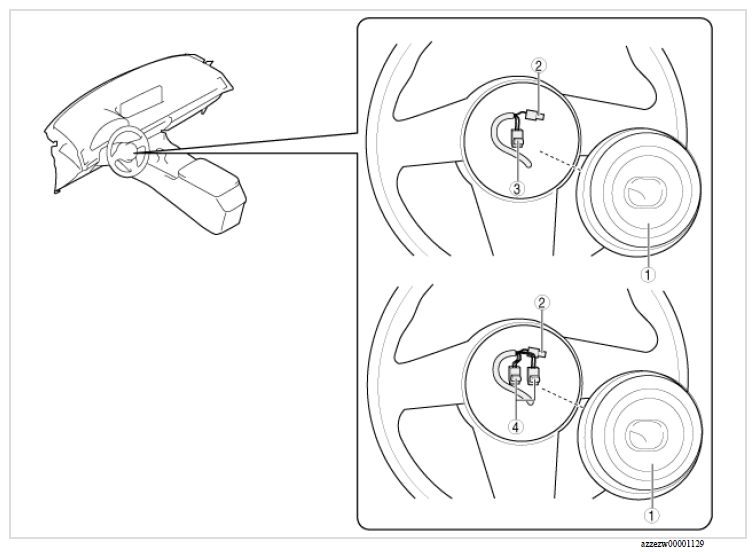

PART NAME DESCRIPTION
| Step | Part name | Applicable condition |
|---|---|---|
| 1 | Driver side air bag module (See DRIVER SIDE AIR BAG MODULE REMOVAL NOTE ) |
- |
| 2 | Horn switch connector | - |
| 3 | Air bag module connector (See Air bag module connector disconnection note ) |
Standard deployment control system |
| 4 | Air bag module connector (See Air bag module connector disconnection note ) |
Two-step deployment control system |
