Remove Driver Side Lower Panel: Notes

NOTE:

If the driver side lower panel is replaced, remove cluster switch No. 1 and cluster switch No. 2.

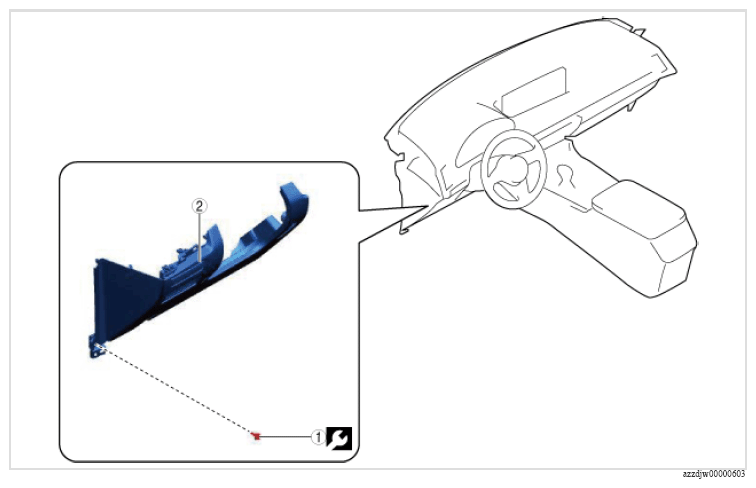

Fig 1: Driver Side Lower Panel Bolt With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Bolt	4 N.m {41 kgf.cm, 35 in.lbf}
2	Driver side lower panel (See Driver side lower panel removal note ).	-
