Remove Driver-side Knee Air Bag Module: Notes
WARNING:
- Handling the knee air bag module improperly can activate (deploy) the air bag module unexpectedly, which may seriously injure you. Read the SRS air bag system service warnings and cautions before handling the knee air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS .) (See AIR BAG SYSTEM SERVICE CAUTIONS .)

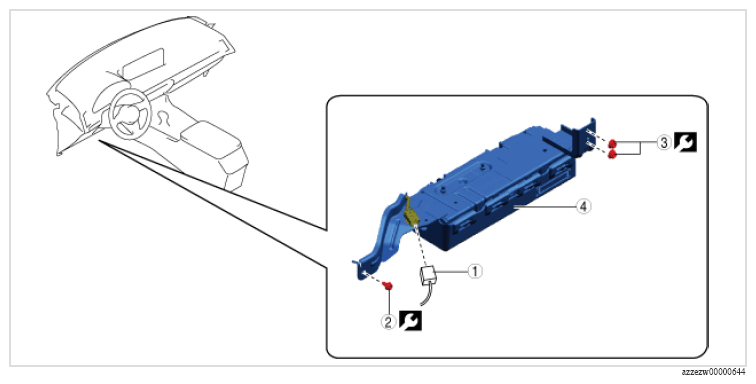

- Remove using the procedure shown in the figure.
TIGHTENING TORQUE SPECIFICATIONS
| Step | Part name | MI001 |
|---|---|---|
| 1 | Air bag module connector (See Air bag module connector disconnection note ). |
- |
| .2 | Bolt | 11 N.m {110 kgf.cm, 96 in.lbf} |
| 3 | Nut | 11 N.m {110 kgf.cm, 96 in.lbf} |
| 4 | Knee air bag module | - |
