Front side trim removal note

  1. Partially peel back the seaming welt until the front side trim can be removed.

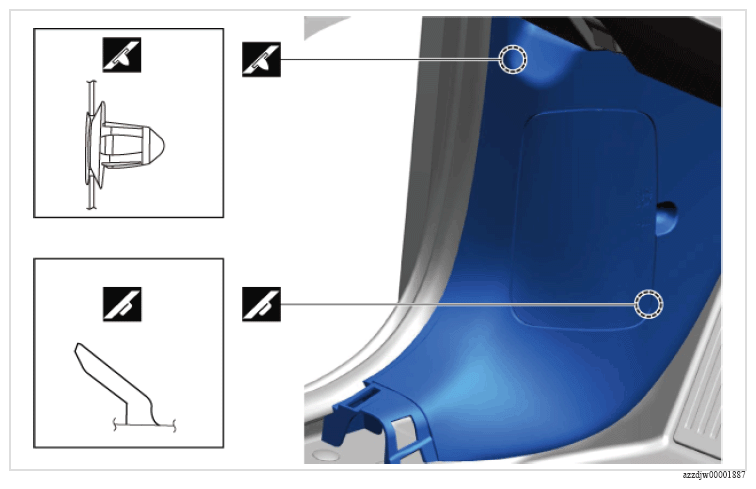

  2. Remove the front side trim as shown in the figure.
G16707746Courtesy of MAZDA MOTORS CORP.
