Remove Light Switch
NOTE:
- The light switch is integrated with the following parts.
- High beam control system (HBC) switch (with high beam control (HBC) system)
- Adaptive LED headlight (ALH) switch (with adaptive LED headlights)

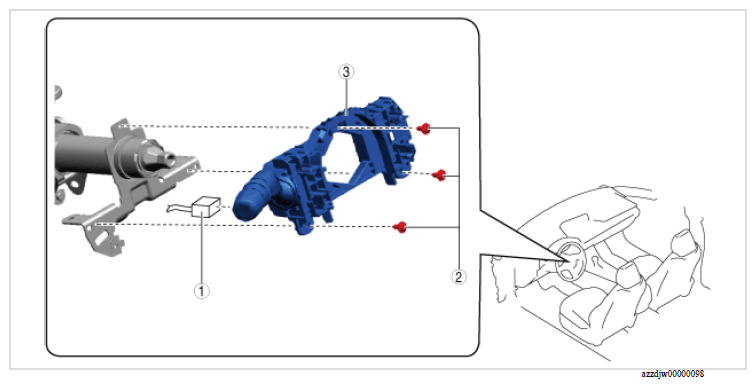

- Remove using the procedure shown in the figure.
PART NAME DESCRIPTION
| Step | Part name |
|---|---|
| 1 | Connector |
| 2 | Screw |
| 3 | Light switch |
