Electric tilt telescopic unit installation note

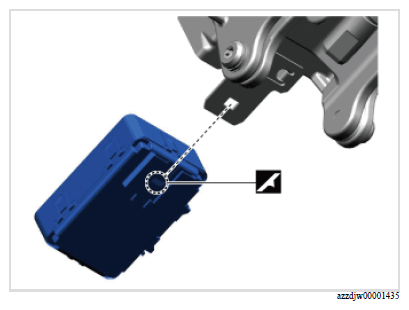

  1. Attach the tab of the electric tilt telescopic unit to the bracket.
G16712237Courtesy of MAZDA MOTORS CORP.
